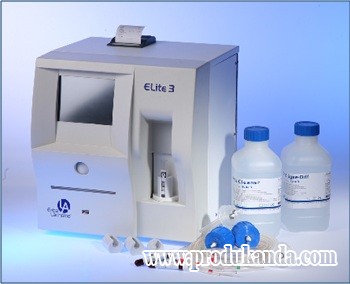

Advanced 3 Part Differential Hematology Analyzer

Benefits

• Only 3 reagents needed (Erba Diluent-Diff, Erba Lyse-Diff, Erba Cleaner), enviroment-friendly (cyanide free)
• Built-in printer with 58 mm wide roll paper, full report with histograms
• USB interface for support: Host computer, Keyboard, External printers, Upgrade control SW, Data back-up, Hand-held barcode reader
• Usage of standard electronic and mechanic components
• Aperture made in technical ruby

Easy handling

• Full colour LCD touch-screen with high contrast ratio
• Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
• User-friendly multilingual operating menu
• Sample rotor, ensuring safe and easy sampling
• Small-sized, low-maintenance needed

Technical Specification

Measurement principles:

• Electrical impedance method
• Photometry – LED based technology

Parameters:
22 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, GRA#, LYM%, MON%, GRA%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 3 histograms (WBC-3part, RBC, PLT)

Throughput: 80 tests / hour
Sample volume: 25µl of whole blood using automatic sample holder
Chambers: Dual chamber advanced system for higher accuracy & precision
Clean Modes:

• High voltage pulses on aperture
• Chemical cleaning of the aperture using Erba Cleaner reagent
• Back-flush using high-pressure

Data capacity: 10 000 results with all histograms
Data back-up method: USB mass storage device
Software upgrade method: Via USB port (using USB mass storage)
Built-in printer: Thermal printer module with 3 flexible options

• Print full report with histograms
• Only Print basic 8 parameters
• Print from memory

User interface & display:

• Full colour LCD touch-screen with high contrast ratio
• Status LED

Dimensions (W x D x H): 320 mm x 260 mm x 365 mm

Net Weight: 12 kg
