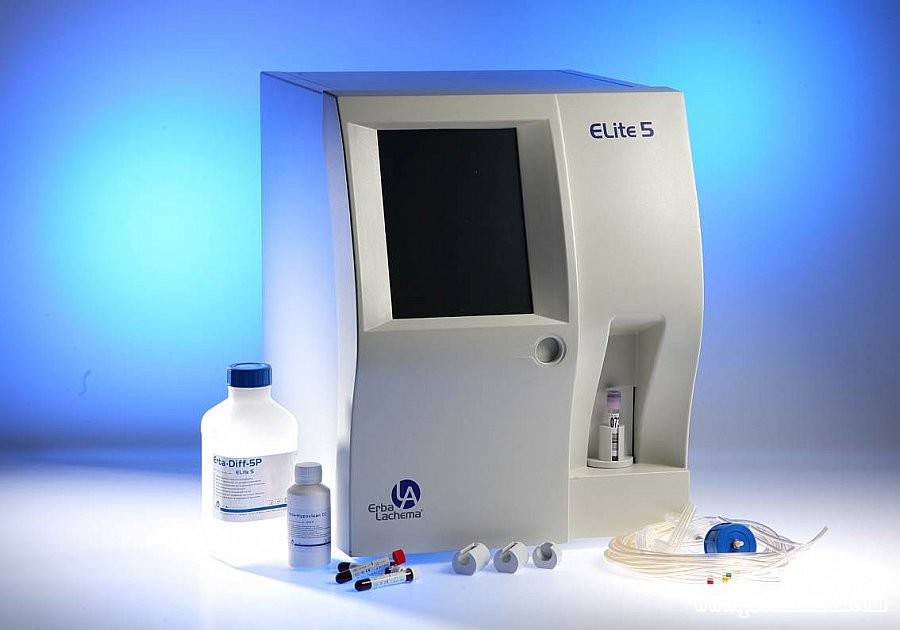

Advanced 5 Part Differential Hematology Analyzer

Benefits

• Only 3 on-line reagents needed (Erba Dil-5P, Erba Lyse-5P, Erba Diff-5P), enviroment-friendly (cyanide free)
• USB interface for support: Host computer, Keyboard, External printers, Upgrade control, Barcode reader (hand-held), SW, Data back-up, Hand-held barcode reader
• Usage of standard electronic and mechanic components
• Aperture made in technical ruby
• Autosampler with built-in Barcode reader and mixer (up to 100 sample tubes in 10 racks), built-in cap detector to determine presence of sample tube cap

Easy handling

• Full colour LCD touch-screen with high contrast ratio
• Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
• User-friendly multilingual operating menu
• Sample rotor, ensuring safe and easy sampling
• Low-maintenance needed

Principles:

• Electrical impedance method with advanced SRV technology
• Diode based LASER Technology with hydro-dynamic focusing for 5 part differential
• Photometry – LED based technology for measurement of hemoglobine

Parameters: 26 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 2 scatter-grams – WBC 5 part differential & WBC/Baso + 2 histograms – RBC & PLT

Throughput: 60 tests / hour
Sample volume: 110 µl of whole blood in open & closed mode, 25 µl in small sample mode (optional)
Chambers: Dual chamber advanced system for higher accuracy & precision
Reagent System: 3 Reagent System – Environment-friendly reagents

• Erba Dil-5P
• Erba Lyse-5P
• Erba Diff-5P

Clean Modes:

• High voltage pulses on aperture
• Chemical cleaning of the aperture using Erba Hypoclean CC reagent
• Back-flush using high-pressure

Choice of languages: English, French, German, Czech, Indonesian, Portuguese, Russian, Spanish
Data capacity: 100 000 results with all scatter-grams & histograms
Safety:

• Sampling using advanced sample holder
• Optional auto sampler (up to 100 samples in 10 racks)

Peripheral ports: USB interface (4) & PS/2

• Support for host computer
• Support for USB or PS/2 keyboard (optional)
• Support for external printers (hp DeskJet, LaserJet)
• Support for hand-held barcode reader (optional)

Data back-up method: USB mass storage device
Software upgrade method: Via USB port (using USB mass storage)
User interface & Display:

• Full colour LCD touch-screen with high contrast ratio
• Status LED

Dimensions (W x D x H): 410 mm x 465 mm x 515 mm
Net weight: 35 kg

Dimensions of autosampler (W x D x H): 190 mm x 380 mm x 322 mm
Weight of autosampler: 10 kg
